The New Standard of Sport
The visceral appeal of cutting-edge sportbike styling immediately catches your eye. Once aboard, you experience the sophisticated balance of power, handling, comfort and faithful response that puts you in full control. It’s a fi ne fusion of elements that invites all riders to a new world of riding pleasure, whether commuting or shopping in town, heading out for an exhilarating run through winding mountain roads, or testing your skills on the racetrack. The GSX-8R is destined to lead the pack toward an exciting new era of sportbike riding.
A Chassis Engineered for True Riding Pleasure
One glance is all it takes to see how the chassis of the GSX-8R is carefully engineered to be slim, compact, lightweight, highly agile and ideally suited to supporting the high-performance parallel twin engine. Every performance aspect refl ects a strong focus not only on great handling and control, but also on minimizing fatigue. At the core of the chassis layout is a strong steel frame built around the engine. The frame helps realize excellent straight-line stability and nimble handling, while also featuring the right amount of fl ex to maximize comfort on long rides or when passing over bumps or cobblestones. Exposed seat rails not only provide solid support, but also contribute to the GSX-8R’s slim proportions and look of functional beauty. A uniquely shaped lightweight aluminum swingarm contributes to a smoother, more comfortable ride by enhancing trackability and rear suspension response. Straight-line stability and nimble handling are features of the chassis geometry, as is a comfortable riding position that eff ectively distributes weight to the front and rear, with a forward-positioned hip point that enables you to shift your weight toward the front and more easily control the GSX-8R when negotiating tight corners. Forged aluminum separate handlebars help you lean over the bars in a sporty riding position that allows you to attack corners with confi dence, making aggressive runs all the more enjoyable

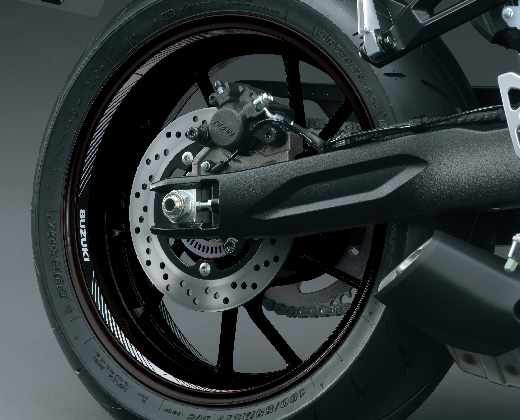

Cast Aluminum Wheels and High-Performance Tires
Cast aluminum wheels with a unique lightweight design contribute to the sharp styling and nimble handling of the GSX-8R. The wheels are shod with Dunlop RoadSport 2 radial tires that benefi t from an internal construction matched to the characteristics of the GSX-8R. Their proven tread pattern employs a silica compound that enhances grip in wet conditions and features durable wear resistance. Both the wheels and tires work in harmony with optimized suspension settings to help maximize grip, stability and agility, and to deliver a comfortable ride.
Optimized Front and Rear Suspension
Hitachi Astemo (SHOWA) SFF-BP* inverted front forks deliver a smooth, controllable ride and feature a spring rate that is optimized for both solid cornering performance as well as straight-line stability. Their stable damping characteristics make them suitable for a wide range of purposes, from sport riding to touring use. The mono-shock link-type rear suspension contributes to agility and stability. The spring preload can be adjusted mechanically, which is particularly benefi cial when preparing to carry a load of gear. * SFF-BP is a registered trademark of Hitachi Astemo, Ltd.
From the sharp, clean design of the front face and fairing, to the slim profile of its rear section, every detail of the GSX-8R’s mass-forward aggressive stance and well-balanced proportions instantly convey performance potential. Exposed parts such as the seat rails and engine parts are painted to highlight the mechanical appeal of functional beauty. And bold graphics that employ iconic typography create a presence that is instantly recognizable and equally appealing.
The Future of Suzuki Sportbike Styling
From the sharp, clean design of the front face and fairing, to the slim profile of its rear section, every detail of the GSX-8R’s mass-forward aggressive stance and well-balanced proportions instantly convey performance potential. Exposed parts such as the seat rails and engine parts are painted to highlight the mechanical appeal of functional beauty. And bold graphics that employ iconic typography create a presence that is instantly recognizable and equally appealing.
Lighting the Way to the Future of Sportbikes
From the advanced functional and aesthetic design of the LED lighting both front and rear, to the informational wealth and unique presentation offered by the instrument panel’s color LCD screen, The GSX-8R is clearly destined to lead the way to your future riding pleasure.

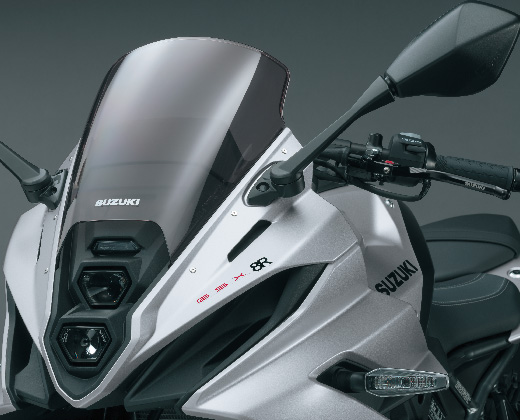

LED Headlights and Position Light
The vertically stacked pair of hexagonal LED headlights topped by an LED position light helps create a slim, compact face with a futuristic appeal that symbolizes Suzuki design. It’s a sharp design with unique character that makes the front end look light and ready for action. Mounted to the frame via the fairing, the headlight assembly contributes to the GSX-8R’s agility and neutral steering feel.
LED Rear Combination Light
The LED rear combination light and LED license plate light mounted on the slim rear fender contributes to a sporty design that makes the rear of the GSX-8R look even shorter and slimmer than it measures.
Full LCD Instrument Panel
The GSX-8R adopts a custom 5-inch color TFT LCD multifunction instrument panel. Clearly legible high-quality information displays keep you fully aware of all the bike’s systems and settings, and supply vital real-time operating status information. The tachometer does double duty as a programmable rpm indicator that blinks when the engine reaches a preset speed, and the LCD now adds a function that lets you display large pop-up alerts and warnings. Manual or automatic settings for switching between the day (white) and night (black) display modes let you maximize visibility at any hour and in any riding situation.
Intuitive Handlebar Switches
The ergonomic switch layout maximizes operating ease and efficiency so you can access all controls while focusing on the road ahead. Select modes and make settings and adjustments for each S.I.R.S. control system by simply operating the MODE and UP/DOWN switches on the left handlebar.
Producing the Power to be Your Best
The 776cm3 parallel twin engine that powers the GSX-8R delivers a fine balance of smooth, controllable power and free-revving performance you will enjoy whether touring, enjoying a brisk ride, competing on the racetrack, or tackling errands around town. Designed to be powerful, effi cient, rider-friendly and versatile, the engine features a 270-degree crank layout with a fi ring order that produces rich torque and positive traction, as well as a pleasing rumble and engine note similar to that of a V-twin engine. It also employs the Suzuki Cross Balancer, an innovative primary balancer design that contributes to smooth operation and the GSX-8R’s nimble handling. The engine’s compact front-to-rear size contributes to achieving optimum weight distribution and chassis geometry, while it also helps position the hip point forward to provide you with an optimal riding position.
776cm
3
, 4-stroke, 2-cylinder, Liquid-cooled, DOHC, Parallel Twin Engine
Distinctive Short Muffler Design
The GSX-8R features a short muffler design that, barely peeking out as it rises from the right side of the engine, contributes greatly to the mass-forward image of this new sportbike. It is part of a 2-into-1 exhaust system engineered to produce a pleasing note befitting the parallel twin engine. Better yet, the two-stage catalytic converter inside the collector helps limit emissions to a level that satisfies Euro 5 standards, while at the same time maximizing power output and overall performance.
From the sharp, clean design of the front face and fairing, to the slim profile of its rear section, every detail of the GSX-8R’s mass-forward aggressive stance and well-balanced proportions instantly convey performance potential. Exposed parts such as the seat rails and engine parts are painted to highlight the mechanical appeal of functional beauty. And bold graphics that employ iconic typography create a presence that is instantly recognizable and equally appealing.
The advanced electronic systems of the Suzuki Intelligent Ride System (S.I.R.S.) featured on the GSX-8R assist and help you optimize performance characteristics to match your changing riding needs and preferences. By making the GSX-8R more controllable, predictable, and less tiring to operate, these systems help you ride with greater peace of mind, whether touring, carrying a passenger, or heading out for a sporty solo run.
Suzuki Drive Mode Selector (SDMS)
You can choose among three different power output characteristic modes to best match varying riding conditions or your preferences. While all three ultimately deliver maximum engine output at the high rpm, fine control over the level of throttle response and torque characteristics as you open the throttle to accelerate empowers you to ride with greater confidence and pleasure.
Mode A
(Active)
Delivers the sharpest throttle response as you open the throttle. Torque characteristics are fi nely tuned to deliver exciting acceleration as the throttle is opened.
Mode B
(Basic)
Features softer throttle response and a more linear power delivery curve as you open the throttle. Settings are tuned to help make the bike more controllable and a good fit for everyday riding.
Mode C
(Comfort)
Off ers yet softer throttle response and more gentle torque characteristics. This mode is useful when riding on wet or slippery surfaces.
Suzuki Traction Control System (STCS)
Designed to help prevent the rear wheel from slipping, this system reduces stress and fatigue while instilling greater confidence in controlling your ride. You can select from three active modes to control how quickly the system takes effect and how proactive it is in limiting wheel spin, or you can opt to run with it turned off.
Note: Suzuki Traction Control System is not a substitute for the rider’ s throttle control. It cannot prevent loss of traction due to excessive speed when the rider enters a turn and/or applies the brakes. Neither can it prevent the front wheel from losing grip.Bi-directional Quick Shift System
When activated, this standard-equipment system lets you shift up or down without operating the clutch lever while in motion. Features include clean upshifts with smooth acceleration and downshifts that are also quick and easy, thanks in part to automatic blipping and engine braking working together. The gear shift linkage system load rate is optimized to provide a solid, satisfying click with each shift that assures you the gearbox has responded immediately to your action.
Ride-by-wire Electronic Throttle System
This cable-free system leverages the onboard ECM to finely control the relationship between throttle action and engine output characteristics. As a result, linear feedback to throttle grip action makes the GSX-8R feel controllable and helps promote more confident riding.
Low RPM Assist
By helping prevent engine speed from dropping excessively when you pull away from a standing start or ride at low speeds, this function delivers smoother starts and inspires greater confidence when you are riding in stop-and-go traffic, or when doing U-turns.
Suzuki Easy Start System
One quick press of a button starts the engine. As a function used on every outing, Easy Start makes your riding experience all the more pleasurable and convenient.

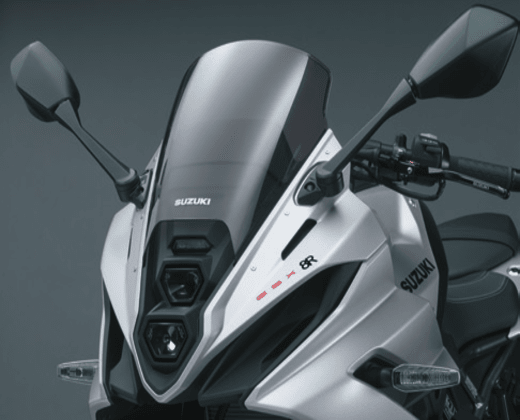

_66dea10e8abdc.png)

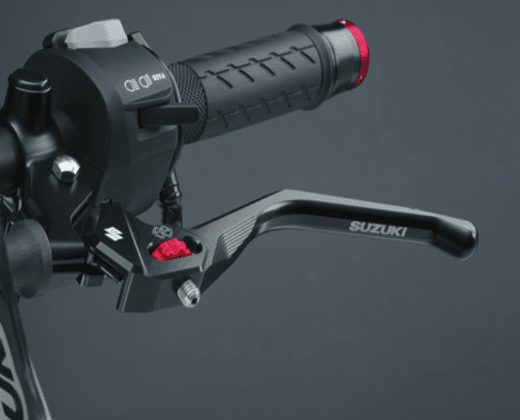

_66dea0e50d2eb.png)

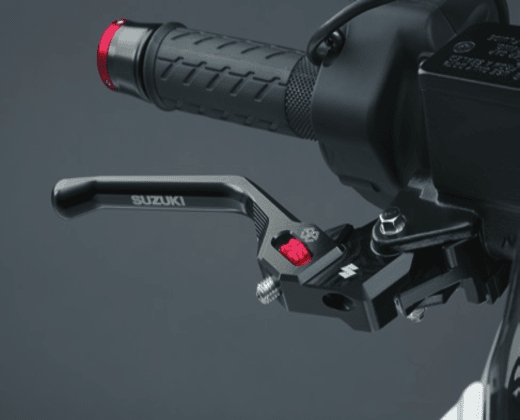

_66dea0d412b83.png)
Images used are for illustration purposes only. Accessories shown in the pictures are not a part of the standard product and may vary from variant to variant.
ENGINE
| Engine Type | 4-stroke, 2-cylinder, liquid-cooled, DOHC |
| Bore x Stroke | 84.0 mm x 70.0 mm (3.3 in. x 2.8 in.) |
| Displacement | 776 cm3 |
| Transmission Type | 6-speed constant mesh |
| Compression Ratio | 12.8 : 1 |
| Lubrication System | Forced feed circulation, Wet sump |
DIMENSIONS & WEIGHT
| Overall Length | 2,155 mm (84.8 in.) |
| Overall Width | 770 mm (30.3 in.) |
| Overall Height | 1,135 mm (44.7 in.) |
| Wheel Base | 1,465 mm (57.7 in.) |
| Ground Clearance | 145 mm (5.7 in.) |
| Seat Height | 810 mm (31.9 in.) |
| Kerb Weight | 205 kg (452 lbs.) |
BRAKES
| Front | Disc, twin |
| Rear | Disc |
TYRES SIZE
| Front | 120/70ZR17M/C (58W) tubeless |
| Rear | 180/55ZR17M/C (73W) tubeless |
| Rake / Trail | 25° / 104 mm (4.1 in.) |
SUSPENSION
| Front | Inverted telescopic, coil spring, oil damped |
| Rear | Link type, coil spring, oil damped |
ELECTRICAL
| Starter system | Electric |
| Ignition System | Electronic ignition (transistorized) |
FUEL TANK
| Fuel system | Fuel injection |
| Fuel consumption | 23.8 km/L (4.2 L/100km) in WMTC |
| Fuel Tank Capacity | 14 L (3.7/3.1 US/lmp gal) |
| Oil Capacity (Overhaul) | 3.9 L (4.1/3.4 US/Imp qt) |
| CO2 emissions | 99 g/km in WMTC |
